Garmin

010-02335-01

Garmin ECHOMAP UHD 74cv

JOIN THE CLUB. FIND MORE FISH.

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount and a transducer for Ultra High-Definition scanning sonar and CHIRP traditional sonar.

Sonar icon


See below your boat in incredible detail with included transducer

Mapping icon


Navigate any waters with preloaded BlueChart® g3 coastal charts

Sharing icon


Share data with other devices on your network (7” and 9” models only)

ActiveCaptain icon


Manage your marine experience from nearly anywhere

Force icon


Control the most powerful trolling motor available

QuickDraw icon


Create your own maps on the fly and tailor them to fit your needs

Take fishing to the next level.

Take fishing to the next level.

ECHOMAP UHD 74cv with sonar screen

SONAR SUPPORT

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

ECHOMAP UHD 74cv with transducer screen

INCLUDED TRANSDUCER

This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

ECHOMAP UHD 74cv with mapping screen

PRELOADED CHARTS

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts featuring integrated Navionics® data. Charts cover the coastal U.S., including the East and West coasts, Gulf of Mexico and the U.S. and Canadian sides of the Great Lakes.

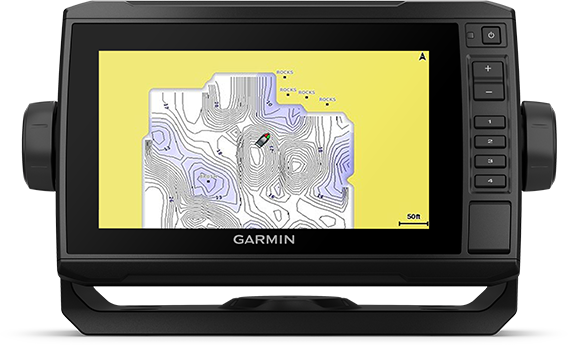

ECHOMAP UHD 74cv with QuickDraw screen

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Boat connected.

Boat connected.

ECHOMAP UHD 74cv with network screen

NETWORK CAPABLE

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).

ECHOMAP UHD 74cv with NMEA screens

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

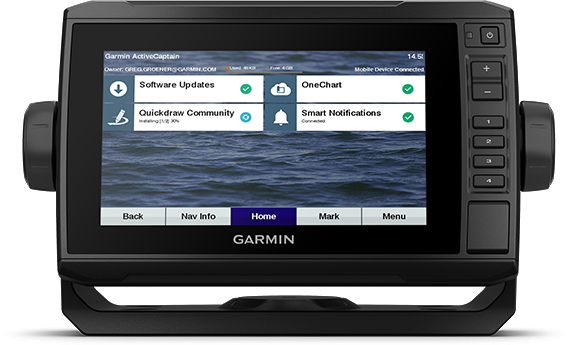

ECHOMAP UHD 74cv with ActiveCaptain app screen

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

ECHOMAP UHD 74cv with trolling motor screen

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.


General

PHYSICAL DIMENSIONS 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
DISPLAY SIZE 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT

1.7 lbs.(0.77kg)

WATER RATING

IPX7

MOUNTING OPTIONS Bail or flush
POWER CONSUMPTION

15W

ANTENNA Internal or external over NMEA 2000
TRANSMIT POWER 500 W (RMS) / 4,000 W (peak to peak)
RECEIVER

5 Hz

GARMIN MARINE NETWORK™ PORTS

1 Panoptix™ port

Maps & Memory

PRELOADED MAPS

BlueChart® g3 (coastal maps)

ACCEPTS DATA CARDS

1 microSD™ card; 32 GB maximum size

WAYPOINTS

5,000

TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100

Outdoor Recreation

TIDE TABLES

Chartplotter Features

GARMIN SONAR COMPATIBLE
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)
GCV™ BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN COMPATIBLE

Sonar Features & Specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
CLEARVÜ

Yes with CHIRP (built-in)

MAXIMUM DEPTH

2,300 ft @ 77 kHz, freshwater

1,100 ft @ 77 kHz, saltwater

(depth capacity is dependent on water bottom type and other water conditions)

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH
SONAR RECORDING
SONAR HISTORY REWIND

Connections

NMEA 2000® COMPATIBLE
TRANSDUCER PIN NUMBERS 8
NMEA 0183 INPUT PORTS

1

NMEA 0183 OUTPUT PORTS

1

WIRELESS CONNECTIVITY

Yes

  • ECHOMAP UHD 74cv with BlueChart g3 for U.S.
  • GT24UHD-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
